Metallic Color On - line Laser Perforation System 3 × 380V AC 60Hz

  • Color Metallic
  • Voltage 3x380V
  • Material Metallic
  • Resonator life > 20,000 hours
  • Laser Power 6km
  • Punch pulse time 5 ~ 60μs
Yes, l am interested!
This item is collected in wish list
Metallic Color On - line Laser Perforation System 3 × 380V AC 60Hz

Metallic Color On - line Laser Perforation System 3 × 380V AC 60Hz

Metallic Color On - line Laser Perforation System 3 × 380V AC 60Hz

Requirement Details

Your message must be between 20-3,000 characters!


Check your email


Check your phone number

Submit Requirement

On-line Laser Perforation Machine Equipment System 3×380V AC 50/60Hz

Technical performance

Operating Voltage:3*380V AC 50/60Hz.

Power Consumption: Max 6km.

Laser Type: K Series CO2 pulsed lasers.

Wavelength: 10.6 μm

Beam Divergence (full angle): ≤ 2.1 mrad

Beam diameter: 7.2 mm

Tube Shelf Life: > 20,000 hours

Pulse Period (minimum): 10μs

Compressed Air Consumption:4.5m3/h

Cooling Water Consumption: 40kg distilled water

Sensing parts

Code Category Function
DCP Proximity switches MAX pulse occurs(DCP)
PT100 Temperature sensor Monitoring the cooling water temperature
SQ3 Proximity switches Check if power meter or focus head in place
RST Level switch Check the cooling water level (low level alarm)
B17 Detection switch Blocking smoke detector
A64 Signal processing board Signal Processing

Implementation components

M1 Electric fan Heat exchanger fan (electric components cooling)


Inverter Drive motor (optional)
M3 Pump motor Driving the cooling water pump
DC48 Laser Power To the resonant cavity and the RF power amplifier

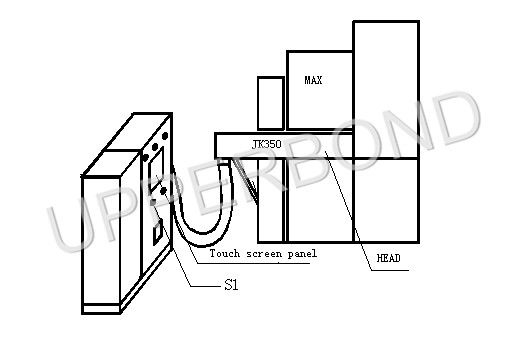

HEAD Resonator Emitting laser
