Big Output 20000cig / Min Cigarette Making Machines With Transferring Function

  • Speed 20000cig/min
  • Fault rate ≤0.1%
  • Relative humidity ≤90%
  • Frequency 50HZ
  • Material Metal
  • Model YF17
Yes, l am interested!
This item is collected in wish list
Big Output 20000cig / Min Cigarette Making Machines With Transferring Function

Big Output 20000cig / Min Cigarette Making Machines With Transferring Function

Big Output 20000cig / Min Cigarette Making Machines With Transferring Function

Requirement Details

Your message must be between 20-3,000 characters!


Check your email


Check your phone number

Submit Requirement

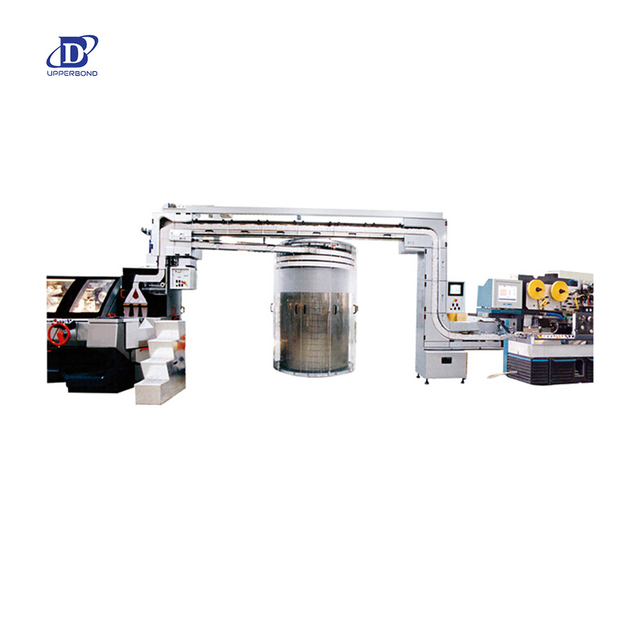

YF17 Cigarette Storing and Transferring System

YF17 is a link system researched and developed by China Tobacco. It is used to connect the high speed cigarette maker and the packer with a reservoir of large capacity. YF17 system could steadily transfer the cigarettes from the maker to the packer and control the product flow in real time, buffering and coordinating the maker and the packer in the best running condition.

Technical Features

In order to improve the cigarette transferring function, it adopts technical advantages from the spiral steel belt storage system. To keep the cigarette fresh, it can empty the reservoir and transfer all cigarettes into the packing machine. The electric control system uses the advanced PROFIBUS filed-bus technology and integrates the worldly famous electric elements, with perfect extensibility and compatibility, suitable for the management of information technology and network. It is convenient to be maintained with low cost.

YF17 is in the leading position of this kind of machine in China and is suitable for linking up with the different high-speed cigarette makers and the packers.

Main Technical Parameters



Reserve capacity: 90000-140000cig/min

Matched speed range:6500-200000cig/min

Power supply: 380V ± 10%(3phases)

Total power: 6kw

Matched speed range: 6500-20000cig/min Ambient temperature: -10%-40%
Fault rate: ≤0.1% Relative humidity: ≤90%
