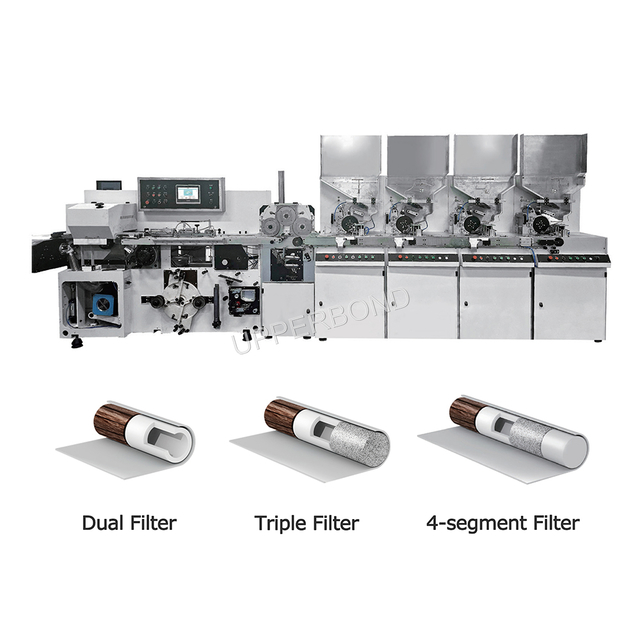

4-Segment Filter Combiner Machine for Multi-Structure HNB Filter Rod Production

  • Brand UPPERBOND
  • Product Name Filter Combiner Machine
  • Capacity 100-200 m/min
  • Filter Diameter 5.4-7.9 mm
  • Filter Length 72-144 mm
Yes, l am interested!
This item is collected in wish list
4 Segment Filter Combiner Machine for Multi-Structure HNB Filter Rod Production

4 Segment Filter Combiner Machine for Multi-Structure HNB Filter Rod Production

4-Segment Filter Combiner Machine for Multi-Structure HNB Filter Rod Production

Requirement Details

Your message must be between 20-3,000 characters!

Email

Check your email

Phone

Check your phone number

Submit Requirement
  • Description
  • Specification
  • Q & A
  • Customer Reviews
  • Shipping Policy
  • Wholesale Inquiry
The Modular Linear Composite Machine utilizes linear composite technology to divide base rods of various specifications into short rods according to requirements. These short rods are transported via a chain conveyor and turned sequentially by a rotary disk, then placed onto the suction belt in an orderly manner with a certain gap between each segment. Different types of short rods are alternated in the required sequence.

The filter rods move continuously at high speed and are aligned and compacted by a gap-closing device. They are then delivered to the garniture for rolling and shaping, where adhesive is applied to form continuous rod strands. The strands are cut into individual composite filter rods by a cutting head.

Using an acceleration wheel, the composite filter rods are transferred to the capture wheel in the output unit. During this process, defective filter rods are rejected. The qualified composite filter rods are then transported to the rod collector or tray loading system.

Dual Filter Triple Filter 4-segment Filter
Model FC200 FC150 FC100
Capacity 200 m/min 150 m/ min 100 m/min
Filter diameter 5.4-7.9 mm 5.4-7.9 mm 5.4-7.9 mm
Filter length 72-144 mm 72-144 mm 72-144 mm
PLC Siemens Siemens Siemens
